11. Raytracing

Back to raytracing

• raytracing: trace a path from user eye through each pixel, and intersect that ray through object surface in scene. Colour the pixel the appropriate colour:
• use the front-most object intersection point (does hidden surface)
• compute the colour at that precise intersection
• raytracing gives photorealistic effects because:
• (a) not limited to polygonal models - can define mathematical volumes
• (b) possible to extend the ray throughout the picture, through glass (refraction), mirrors (reflection),... very complex lighting effects
• two essential mathematical principles used:
• 1. intersection of ray through various geometric objects
• 2. compute the illumination at intersection point
• the position of eye, screen, perspective, and scene extents are all defined for the algorithm
• use similar subroutines to OpenGL's perspective, lookat, etc

Raytracing

Raytracing

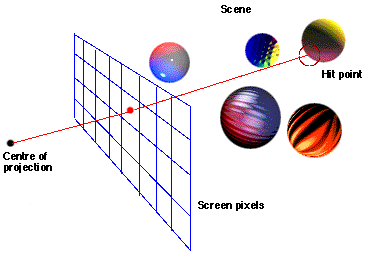

• Image from Hill
• pseudocode raytracing (from Hill, code frag 18.1)

- define objects and light sources in scene
- set up the camera
- for j = 0 to MAXROW
      for i = 0 to MAXCOL  /* cast i,jth pixel's ray */
         - build the parameters of i,j-th ray
         - find all intersections of ray with objects in the scene
         - identify the intersection that lies closest to camera
         - find the colour of light returning to camera along the
           ray from the point of intersection
           - if ray reflects at hit point:
                     determine reflection ray, and recurse
           - if ray refracts at hit point:
                     determine refraction ray, and recurse
         - combine colour of eye ray, reflection ray, refraction ray
         - draw combined color: SetPixel(i,j,colour)
   end

Raytracing

• raytracers have a stock library of geometric objects
• building blocks for entire image
• includes polygons, spline surfaces
• eg. Bryce 2's object primitives...

• you then build objects by placing & intersecting geometric objects
• together, defining various material and lighting properties to them
• possible data structures (from [Hill 1990], code 18.3, p.623):

ray = record
   start, dir: vector3D
end;
generic type = (sphere, cone, cylinder, cube, ...);
obj_ptr = ^instance;
instance = record
   kind: generic_type; /* type of object */
   transf: affine3D;   /* 3D transformation for object  */
   nature:... ;        /* surface props, materials, reflect,...*/
   next: obj_ptr;      /* points to next object in scene */
   ... etc ...
end;

Raytracing: intersecting the eye ray with an object

• optimized mathematical equations will be used for determining intersection of ray
• Ray equation similar to that of a line:  P0 + su
• where P0 is start location, and u is direction parameterized by s
• eg. intersecting a ray with a sphere (easiest object for ray tracers to handle!):
• surface points P of sphere at location Pc of radius r: | P-Pc |^2 - r^2 = 0
• substitute ray into equation: | P0 + su - Pc |^2 - r^2 = 0
• This can be solved for s: s = u dot DP +/- sqrt((u dot DP)^2 - abs(DP)^2 + r^2)
• where DP = Pc - P0; a dot b = dot product
• If s is negative, no intersection; else substitute s into ray equation to get intersect point.
• eg. ray with a polyhedron:
• first, enclose polyhedron in a bounding sphere
• If ray intersects sphere, then attempt intersection with polygon sides of polyhedron
• (i) determine intersection of ray with plane containing a polygon
• (ii) Using inside/outside test, determine of that intersection within polygon
• (iii) repeat until closest intersection point found (if it intersects at all)

---

Raytracing

• Hit spot: where eye ray hits object (intersection point)
• we find hit spots for ray and all objects in scene; then use the closest hit spot (visible surface determination)
• finding normal at hit spot: depends on object
• eg. sphere - normals point out radially from sphere center to surface
• eg. cube - normal perpendicular to the surface containing hit spot
• once normal found, you put it in the lighting equation we used before
• Can also apply texture to that point: look in object data structure, and see it a texture is to be applied. If so, compute a texture colour for it
• Once colour determined, we draw the pixel using that colour, and move onto the next pixel (ie. new eye ray)

Raytracing

• raytracing can be advanced: refraction, reflection, bump maps, ...

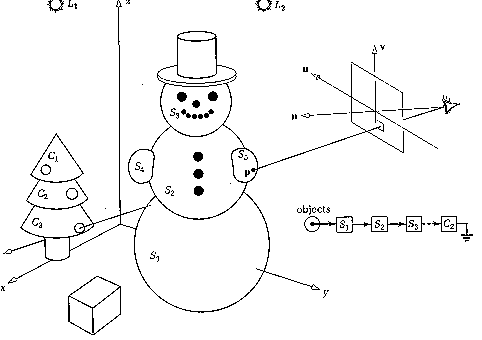

(from [Hill 1990])

• Each bounced ray has the basic raytracing principle applied to it recursively; hence "recursive raytracing"
• need to supply a depth level, otherwise recursion for raytracing may never stop!
• Optimization considerations
• simplify and optimize intersection computations
• enclose objects in bounding volumes (eg. spheres or cubes) whose intersections are fast to compute; if the ray doesn't intersect the volume, don't bother intersecting with the actual object
• Hierarchies: organize model such that the children in a tree hierarchy cannot intersect a ray if its parent cannot
• spatial partitioning: partition scene into grids, and compute intersection with objects within the grid that the ray passes

Raytracing: POV (Persistence of Vision)

• Many raytracers are available commercially or in public domain
• one example: POV "Persistence of Vision"
• www.povray.org
• runs on Windows, OSX soon (?)>
• current version: 3.7
• there's a 700+ page book by Waite Group on POV: amazon.com
• user sets up a scene using POV language:
• you set up camera (eye), objects, surfaces, colours, textures, lights, and POV draws it eventually (after seconds, minutes, or hours!)
• Typical POV file (text)
• at least a few CAD-like interactive scene editors are available on PC
• PV3D, povcad (windows)
• they convert the scene you make into a POV language file (text)

Beyond Raytracing: Radiosity

• Raytracing and raster-scan algorithms presume a constant ambient light for entire environment.
• Radiosity is another rendering approach
• based on thermal-engineering models for the emission and reflection of radiation
• presumes conservation of emitted and reflected light in an environment
• radiosity: sum of the rates at which the surface emits energy and reflects or transmits it from that surface or other surfaces
• approach:
• 1. determine all the light interactions in an environment
• view-independent
• 2. render a view
• visible surface determination, interpolative shading
• Differences from ray tracing
• all objects can emit light from their surfaces
• much more realistic rendering than ray tracing, which seems harsh in comparison
• subtle interaction of objects wrt one another
• soft shadows
• computationally very expensive (upwards of 6+ times slower)
• but as CPU's become faster, and algorithms become more optimized, it will become more common

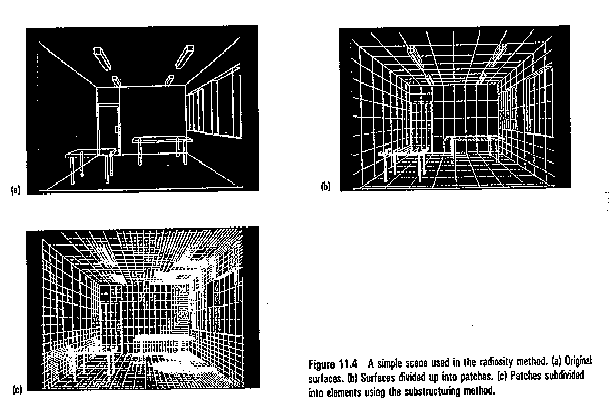

• Illustration [Watt and Watt]
• Site with raytracing, radiosity examples

Raytracing: comments

• Historically, raytracing has not been intended for interactive animated 3D graphics:
• too many calculations to do within an interactive frame iteration
• BUT... this is changing with advent of powerful hardware (GPU's): real-time ray tracing.
• Will raytracing be a realtime rendering technology? It is already... Battlefield V
• Demo.
• Another demo.
• note the difference between OpenGL (scan converted) photorealism and a ray tracer's:
• a) ray tracer computes exact lighting at each pixel
• b) OpenGL computes exact lighting at polygon vertices, and interpolates intermediate surface lighting
• Gouraud, Phong shading give "estimated" smoothness, and OpenGL's lighting techniques give "estimated" lighting values
• --> much faster to interpolate!
• BUT... ray tracing scales better to very large scenes. Scan conversion can render unseen models needlessly.
• Cannot compute refraction &reflection in OpenGL, so you'll don't get those photorealistic effects.
• Raytracing isn't the ultimate rendering technique
• many commercial packages do not use raytracing (eg. Renderman)
• movie Toy Story: no raytracing!
• reflection & refraction can be simulated using environment mapping
• Radiosity is much more realistic.
