2. Intro to OpenGL

Brock University
COSC 3P98 Computer Graphics
Instructor: Brian J. Ross

Intro to OpenGL

OpenGL: open architecture graphics library for 2D and 3D graphics
grew from Silicon Graphic's GL
there is a OpenGL standards committee
lots of different implementations; some are commercial, others freeware
supported on Linux, Windows, Mac,...
documentation:

OpenGL Programming Guide (Red Book), and OpenGL Reference Manual (Blue Book)
lots of books available: go to amazon.com

Characteristics:

immediate-mode graphics: (default) graphics commands execute when invoked
buffered, display list graphics also possible: saves commands and issues them in a packet

OpenGL platforms

1. Linux (J310)
2. Mesa OpenGL

a freeware "Mesa OpenGL" library exists for the Mac, Windows, Linux,...
not supported in labs

3. OpenGL for Mac, Windows, ...

Drivers usually bundled with OS, or with graphics card.
Our labs use MS Visual Studio.NET.

Compiling OpenGL on Linux (with GLUT I/O library)

in program...

#include <GL/gl.h>
#include <GL/glut.h>      /* or "glut.h" if copied locally */
/* plus any others you need */

compiling...

cc -float -prototypes -O2 -s -o crisscross crisscross.c -L /usr/X11R6/lib -lc -lglut -lGL -lGLU -lX11 -lXmu -lXi -lXext -lm

fullwarn- extra checking
O2- optimizer
s - stripped of debug info
c - C library
-L- directory to search for system libraries (eg. X-windows)
glut- glut I/O library (replace "-lglut" with "libglut.a" if copied locally)
GL - OpenGL libary
GLU - OpenGL Utility library
X11, Xmu, Xext, Xi - X windows libraries
m - math

Important system directories in unix:
- /usr/include/ : this contains the ".h" files. For example, if you use this in your C file:
```
#include
```
  Then this header file is found here: /usr/include/FreeImage.h
- If you use this...
```
#include "FreeImage.h"
```
  then the header is in your local working directory where you are compiling your source.
- /usr/lib/ : this folder contains the library files used for linking. For example, in the above compile line, "-lm" means there is a library file here: /usr/lib/m.a
- Replace "-lfreeimage" with "freeimage.a" if the FreeImage library file is in your working directory

See this tutorial for setting up OpenGL and GLUT on MS Visual Studio.

See WWW for examples, Makefile, ... (as well as many more GLUT library examples)

Simple OpenGL program: green.c

/*
 *  green.c
 *  This program draws a green window. (Yawn!)
 */

#include <GL/gl.h>
#include <GL/glut.h>

void green (void) {

	glClear(GL_COLOR_BUFFER_BIT);
	glFlush();
}

int main(int argc, char** argv)
{
	glutInit(&argc, argv);
	glutInitWindowSize(400, 400);
	glutInitDisplayMode (GLUT_SINGLE | GLUT_RGB);
	glutCreateWindow ("green");

	glutDisplayFunc(green);
	glClearColor (0.0, 1.0, 0.0, 1.0);

	glutMainLoop();
	return(0);
}

Green.c

global state attribute: a global value set for following actions

eg. colour, font, patterns, buffering,...

include line: for OpenGL, glut utilties
glut library calls: for window opening

glutInit: starts up Glut I/O: needed for window output, any I/O, etc
glutInitWindowSize: defines pixel dimensions of window
glutInitDisplayMode: defines type of graphics - single buffer, RGB colour mode
glutCreateWindow: creates a window (via X windows) with given name
glutDisplayFunc: you give Glut the name of drawing routine whenever window must be redisplayed
glutMainLoop: starts Glut processing; should be called only once per program

OpenGL calls: actual graphics

glClearColor: background colour when window 'cleared'
glClear: clears whatever attribute given (ie. buffer)
glFlush: makes sure all graphics commands have been emptied to terminal

Steps in an OpenGL program

Query the availability of graphics resources

used for portable code
what hardware? (not all graphics features supported by all hardware)
eg. size of screen? 8 bit graphics or 24 bit graphics?

Initialize graphics library (global attributes, winopen)
Call OpenGL routines to do things (body of application program)
Terminate

OpenGL command structure

OpenGL commands begin with "gl" prefix (closed name space)
also glu prefix for OpenGL Utility commands; glut for glut
#args specified in command name if variable number of arguments possible
arguments are normally absolute, but indirect (array) args possible if command permits a "v" suffix
data type of arguments specified as well

Suffix	Data type	Typical C equiv	OpenGL type defn
b	8-bit integer	signed char	GLbyte
s	16-bit integer	short	GLshort
i	32-bit integer	long	GLint, GLsizei
f	32-bit float	float	GLfloat, GLclampf
d	64-bit float	double	Gldouble, GLclampd
ub	8-bit unsigned integer	unsigned char	GLubyte, GLboolean
us	16-bit unsigned integer	unsigned short	GLushort
ui	32-bit unsigned integer	unsigned long	GLuint, GLenum, GLbitfield

OpenGL: vertices

vertex: a 2D (x,y) or 3D (x,y,z) point on a plane/in space, which defines the endpoint of part of a geometric figure

vertices should reside within a mathematical space you define
default uses window size values, but you should set your own

eg. specifying vertices...

glVertex2i (25, 60);
glVertex3f(2.4, -.0007, 0.0);
glVertex3iv(vert1); /* GL-style vertex */

Drawing: form of instructions...

glColor3f(1.0, 0.0, 0.0);  <-- Red
glBegin(GL_LINE_LOOP);    <-- connected closed-loop lines is object type
   glVertex2iv(vert1);  <-- each defines an endpoint for part of object
   glVertex2iv(vert2);      being drawn, def'd in a vector
   glVertex2iv(vert3);
   glVertex2iv(vert4);
glEnd();

immediate mode plotting: drawing within glBegin--glEnd is done ASAP (can be network delay)
glPointSize, glLineWidth: define pixel size of points, lines

OpenGL: geometric primitives

glBegin(XXX); ... glEnd();

the type of primitive is specified in glBegin

Possible primitives...

GL_POINTS: point at each vertex
GL_LINES: line between each pair of vertices
GL_POLYGON: a polygon between vertices
GL_TRIANGLES: triangles (preferred for 3D graphics)
GL_LINE_STRIP: continuing lines
and others

glEnable(GL_POINT_SMOOTH); // smooth points, lines

OpenGL: coordinate systems

screen coordinates: eg 760 by 1024

mouse coordinates returned by I/O library routines are these

window size: the pixel range that is used for drawing
"logical" coordinates: the mathematical coordinate range you are using
in your application's model

for example, a mathematical function might use a coordinate system
-0.3 < X < -0.29, 50000 < Y < 50000000

it is convenient for programs to use the model's coordinate system and let OpenGL convert it into the window's pixel coordinates (which in turn are automatically converted to the screen coordinates by OpenGL/X)
use:

glutInitWindowSize - to indicate size of window (ie. plotting area size)
glOrtho(GLdouble left, right, bottom, top, near, far);

needed for 2D and 3D graphics; 2D case -- make sure near and far have a non-zero dimension
OpenGL requires you use glOrtho, even after defining window size

gluOrtho2D(left, right, bottom, top)

to specify the logical 2D coordinate system which is to be mapped into the window positions indicated

glutInitWindowPosition(int x, y);

put top-left corner of window at this location on screen

glutInitWindowSize(400, 400);

gluOrtho2D(0, 500, 100, 200);

OpenGL color

color maps: used to map color information to CRT hardware
TV screens have 3 "guns": red, green, blue
during horizontal scans, each gun fires at either red, green, or blue
phosphors on screen (look closely at a monitor screen)
combinations of different intensities of these phosphors create different colours when viewed from afar

OpenGL: RGB color scheme

2 major color modes: RGB mode, color map mode
RGB: "red green blue" standard of colour

3 values for R, G, B yield different colours
equal values for each give neutral shades (000=black, 111=white, else grey)

RGB mode and color map mode both use RGB colour definitions
on O2, use "cedit" program to play with RGB colours

OpenGL: color map mode

bitplane: the amount of memory used per pixel

contains color information (plus other stuff on some machines)

different graphics cards use different size bitplanes: determines the range of colors you see on CRT

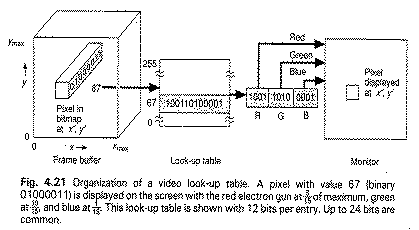

colormap mode: bitplane refers to entry in a table that has RGB value

easier to change lots of pixel values in one shot: just change table value
also, 8 bits per R,G,B then available
(RGB mode: must change each pixel separately)

color map table: 8 (or 12 bit) index = 256 (or 4096 ) colours to store and see at one time

hardware itself determines the number of these you can see at once
table entries use full 24 bits for R, G, B information

must use glut to set up colour map mode in your windowing system (X, Windows,...)

glutInitDisplayMode (GLUT_SINGLE | GLUT_INDEX);

color map mode

glutSetColor(4, 0.5, 0.5, 1.0);

sets table entry 4 to RGB color (.5, .5, 1)

glClearIndex(FLOAT index);

index is a value containing colour for screen clears (like RGB mode's glClearColor)

glIndexi(TYPE index);

index is a value indexing color map (see manual)

        glutInitDisplayMode(GLUT_SINGLE | GLUT_INDEX);
        glutSetColor(1, 0.0, 0.0, 0.0);
        glClearIndex(1.0);
        glClear(GL_COLOR_BUFFER_BIT);

        glutSetColor(10, 1.0, 0.0, 0.0);
        glIndexi(10);
        glBegin(GL_POLYGON);
                glVertex2i(50, 50);
                glVertex2i(100, 100);
                glVertex2i(0, 0);
        glEnd();  /* a red triangle was drawn */

OpenGL: RGB mode

In RGB mode, each bitplain specifies RGB data directly

24 bit: full 8 bits per R, G, B
8 bit (older): 3 bits for R and G, 2 bits for B

RGB mode is required for most 3D graphics with shading
hence, in RGB mode, 24-bit O2 can display all 16 million colours on screen at once
But what about 8 bit PC's with older graphics cards? 2 bits for blue???

solution: "dithering" : technique that uses pixel patterns to simulate different colours
if you look closely at a dithered section of screen, you can see patterns of coloured pixels; move away, and a "colour" appears

OpenGL: RGB mode

glutInitDisplayMode (GLUT_SINGLE | GLUT_RGBA);

starts RGB mode (default is color map mode)

glClearColor(1.0, 1.0, 1.0, 1.0)

specifies R, G, B, alpha (transparency) of default window colour
keep alpha=1 (no transparency)

glClear(GL_COLOR_BUFFER_BIT)

clears window
can clear other things (more later)

glColor3f(1.0, 0.0, 0.0)

says: full red, no blue, no green
Important bug-avoiding point: integer variation (glColor3i) uses range of integer value in 'int' to specify colour (eg. -32768...32767)

glColor3ub

alpha variation possible (glColour4f)

Another example: crisscross.c

#include <GL/gl.h>
#include <GL/glut.h>


void crisscross(void) {

    glClear(GL_COLOR_BUFFER_BIT);
    glBegin(GL_LINES);
        glVertex2i(50, 50);
        glVertex2i(350, 350);
        glVertex2i(50, 350);
        glVertex2i(350, 50);
    glEnd();
    glFlush();
}

main(int argc, char **argv)
{
    glutInit(&argc, argv);
    glutInitWindowSize(400,400);
    glutInitDisplayMode(GLUT_RGB);
    glutCreateWindow("Glut Crisscross");

    glutDisplayFunc(crisscross);

    glClearColor(1.0, 1.0, 1.0, 1.0);
    glColor3f(1.0, 0.0, 0.0);
    glOrtho(0.0, 400.0, 0.0, 400.0, 0.0, 1.0);

    glutMainLoop();
}

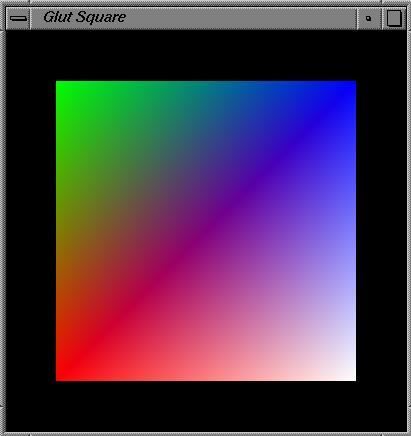

Here's a variation : square.c and its output.

I/O and OpenGL

OpenGL does not support I/O (windowing, mouse, keyboard,...)

a system-dependency which OpenGL avoids; after all, there are many systems out there (X-windows, Windows, Macintosh,...)
however, can't do graphics without I/O!

Some freeware libraries that perform I/O

1. GLUT

comprehensive I/O library, more suitable to real applications
simple lecture examples here if you want to use it (and more complex examples are here)

2. aux

bare essentials for windowing, mouse and keyboard I/O, double buffering (animation)
described in OpenGL Programming Guide (1e)
Very buggy - avoid! (nobody supports it anyway)

OpenGL I/O using Glut

documentation: Look here for GLUT online manual.
See above for basic use for Window I/O.
callback loop: an interrupt-driven loop defined within Glut, which handles all possible events from keyboard, mouse, X-windows,...

essentially defines cases of a case-statement within a large while-loop

Callback registration: programmer specifies the procedures glut should execute when different I/O actions are seen
glutDisplayFunc(void (*func)(void))

assigns function to call when current window must be redisplayed

glutPostRedisplay (void)

Marks active window as needing redisplay by glutDisplayFunc.

glutReshapeFunc(void (*func) (int width, int height))

function to call when current window is reshaped; the parameters are the new size of reshaped window

glutIdleFunc(void (*func) (void))

function to call when no activity occurring (eg. during animation)

glutKeyboardFunc(void (*func)(unsigned char key, int x, int y))

sets key processing routine
x and y are mouse coordinates when the key 'key' was pressed
see glutGetModifiers for state of modifier keys (eg. ctrl,...)

glutMouseFunc(void (*func)(int button, int state, int x, int y))

mouse function callback
button: GLUT_LEFT_BUTTON, GLUT_MIDDLE_BUTTON, GLUT_RIGHT_BUTTON
state: GLUT_UP, GLUT_DOWN
x, y: mouse coordinates

glutMotionFunc (void (*func)(int x, int y))

function to call when mouse is moving in window, when a button is pressed

glutPassiveMotionFunc(void (*func)(int x, int y))

function to call when mouse is moving in window, when no buttons are pressed

glutMainLoop(void)

starts GLUT processing; should be called only once in program

OpenGL programs with glut I/O:

mouse.c
rotate.c
Example with global structure: rotate2.c
Simple example of dynamic 2D array: multidim.c
Example with dynamic 2D array, list, mouse interaction, file I/O: newsample.h and newsample.c

Style

Notice the difficulty in passing data to routines when the Glut library is used.
For example, the function given to glutDisplayFunc cannot be accessed directly by other code: how do you pass data to it?
- Ans: you cannot.
The reason is that Glut processing is geared towards object-oriented programs.
Properly, you should define C++ objects with which to converse with.
In C, you will need global variables.
- Global variables are nasty: can result in horrendous programs.
- Simple solution: put all your global variables in a "global structure".
- Then always access these variables using the global structure name as a prefix. This solves any ambiguity problems!
- Example: rotate2.c
You should not call any OpenGL rendering calls outside of the Glut callback routines. For example, don't try clearing the screen in your main program - that should be done in a callback. If you need the window cleared initially, the glutDisplayFunc callback routine should do that. It might need a flag within itself to keep track of when it should clear the screen or not.
Related to this, make use of glutPostRedisplay. It can be used to mark a window as needing redisplay. Then the appropriate callback (glutDisplayFun?) can redraw it automatically.

C programming and debugging

C advantages:
- Fast.
- Good optimizing compilers.
- Low-level: can do almost anything with hardware.
- Portable.
C disadvantages:
- Low-level: freedom to do anything means anything can happen.
- Minimal memory management: not like Java!
- Cryptic compiler messages.
- Even more cryptic run-time behaviour.
  - Eg. "Bus error." or "Segmentation fault. Core dumped."
Common OpenGL run-time behaviors:
1. Window appears and disappears right away.
2. Window appears, full of mess (eg. background desktop images)
3. Program says "Bus error" or...
Some debugging advice:
1. Carefully design your system. Don't program at the terminal!
2. Incremental design: use small functional components (not huge functions).
3. Incremental implementation: Implement modules. Test them separately. Put them together after tested.
4. Use "lint" for additional compiler messages.
  - use: lint program.c
5. Use fprintf statements to list program progress, variable values.
6. Use "dbx" for run-time debugging.
  - Must first compile your program with "-g" flag (instead of "-O2").
  - use: dbx program
  - Most useful: run your program within dbx, and it will trap memory violations.
  - online help lists lots of commands.
  - Dbx is NOT an algorithm design debugger!

Comments

OpenGL advantages:

device independent
Fast! If hardware acceleration exists, then high quality graphics possible in realtime
2D and 3D (3D will be extension of 2D shapes, but in 3D coordinate space)
sophisticated features: shadows, fog, textures, lighting effects (later in course)
popular standard: OpenGL applications may begin to appear for PC's

drawing primitives covered thus far have limitations:

OpenGL primitives looked at do not retain the geometric shapes drawn: they simply writes over pixels in its raster display
If you want to delete a line, rescale a square, or do other re-editing, the application program has to send additional commands to do it;
akin to using MacPaint; compare with MacDraw, in which you can grab objects (lines, squares, .,..) rescale them, and move them about screen
the openGL application should retain model information
Some graphics libraries will retain data structures that save the geometric shapes:

eg. VRML
But also see OpenGL's display lists!

glut library:

comprehensive
Windows-based systems will permit other I/O to be used

References:

OpenGL Programming Guide, OpenGL ARB, Addison-Wesley 1993, ISBN 0-201-63274-8.
insight books: OpenGL Programming Guide, OpenGL Reference Manual, ...
Online GLUT manual
Glut manual (PDF)
Short Glut article (PS)
Glut quick reference page

Back to COSC 3P98 index

COSC 3P98 Computer Graphics
Brock University
Dept of Computer Science
Copyright © 2009 Brian J. Ross (Except noted figures).
http://www.cosc.brocku.ca/Offerings/3P98/course/lectures/OpenGL/
Last updated: September 15, 2009
